Condenser

+86-571-82776887

Product Description

Model NO.

Customized

Application

Cooler, Condenser, Heat Exchangers

Principle

Regenerative Heat Exchanger

Style

Corrugated/louverd/flat Fin Type

Fins materials

aluminum

Full Customization

Customized

Endplate

Galvanized/aluminum/Stainless steel

Specification

Customized

Trademark

JIANGTUN

Origin

China

Transport Package

Customized

Production Capacity

100000pieces/Years

MOQ

10pcs ( sample is ok )

Delivery time

5-7 days for samples, 15-20 days for bulk production.

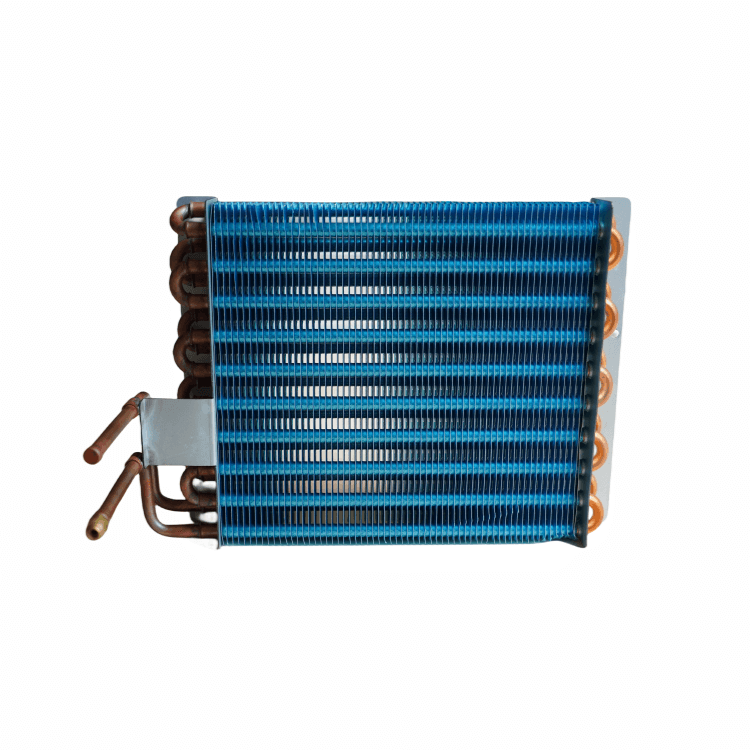

Condenser for Refrigerator (3)

Packaging & delivery


Packaging Details


Foam packed in inner machine,carton pack outside


Port


Ningbo/ Shanghai

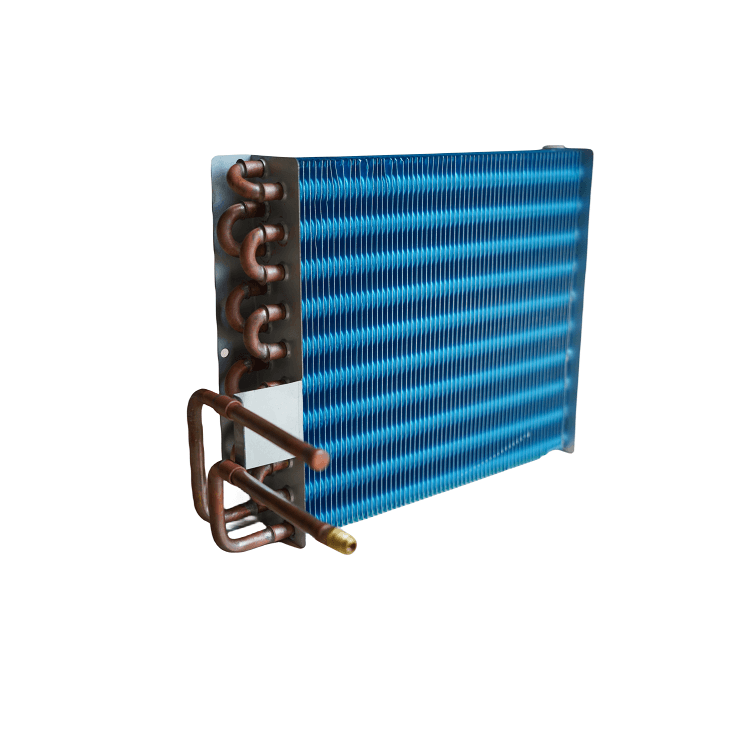

Condenser for Refrigerator (5)

Air-cooled Serpentine Condenser for Refrigerator



An air-cooled serpentine condenser for refrigerators is a component that plays a critical role in the cooling cycle of the refrigerator's refrigeration system. It helps remove heat from the refrigerant, causing it to condense from a high-pressure, high-temperature vapor to a liquid state, which allows for efficient cooling inside the refrigerator. Here's a detailed look at its description, advantages, and potential topics for further exploration:

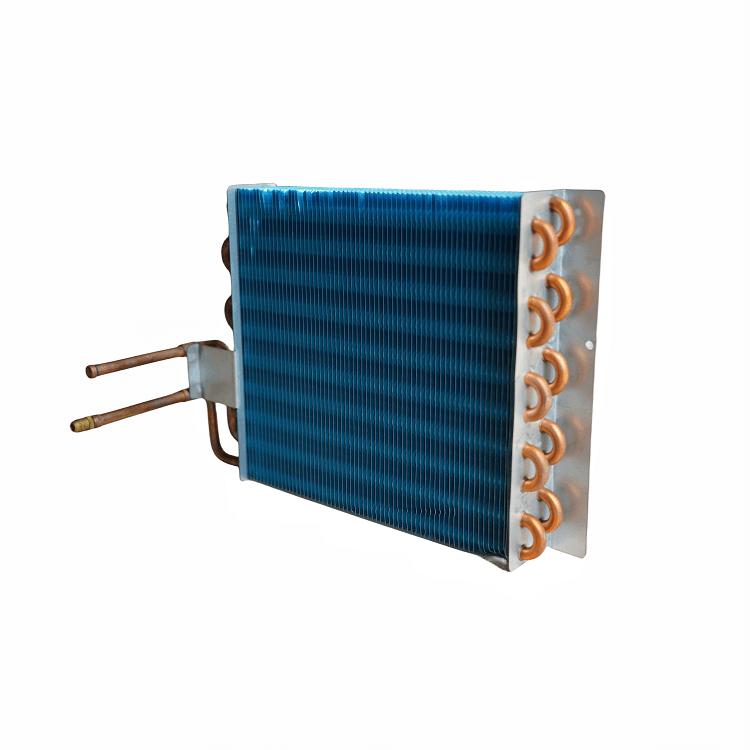

Condenser for Refrigerator (1)

**Description:**



An air-cooled serpentine condenser consists of a serpentine-shaped arrangement of tubing through which the high-pressure, high-temperature refrigerant flows. As the refrigerant passes through the tubes, it releases heat to the surrounding air, causing it to cool down and condense into a liquid. The serpentine design maximizes the surface area for heat exchange, making the condensation process more efficient. The condensed refrigerant then flows to the expansion valve, where it undergoes a pressure drop, resulting in further cooling and evaporation within the refrigerator's evaporator coils.

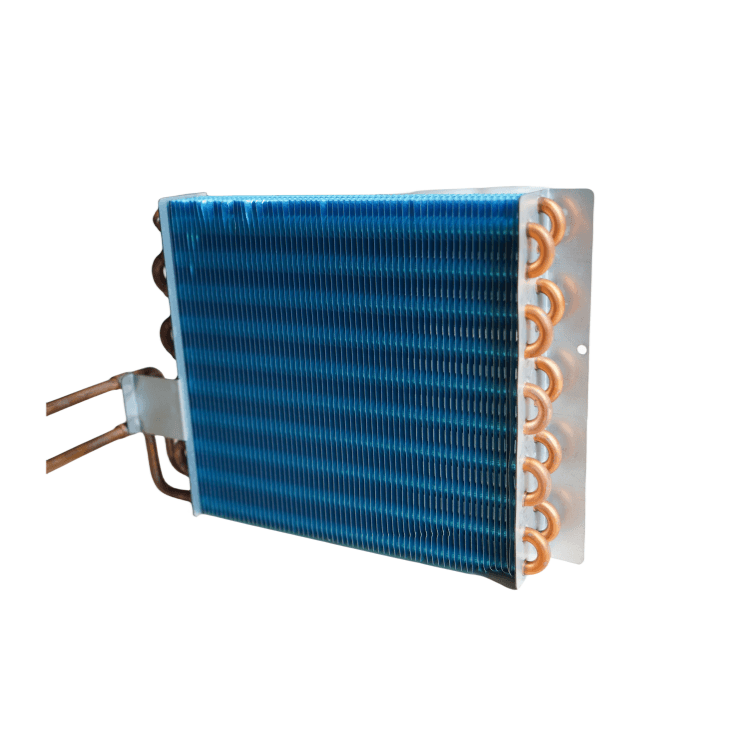

Condenser for Refrigerator (2)

**Advantages:**



1. **Space Efficiency:** Air-cooled serpentine condensers are compact and can be easily integrated into the design of refrigerators, making them suitable for both residential and commercial applications.



2. **No Water Requirement:** Unlike water-cooled condensers, air-cooled condensers do not require a water supply or cooling tower, simplifying installation and reducing maintenance requirements.


3. **Energy Efficiency:** Air-cooled systems can be more energy-efficient than water-cooled systems, as they eliminate the need for water pumps and cooling water circulation.


4. **Reliability:** Air-cooled systems are less prone to issues such as leaks or contamination that can occur with water-cooled systems, enhancing overall system reliability.


5. **Adaptability:** Air-cooled serpentine condensers can function effectively in various environmental conditions, making them suitable for different climates and locations.

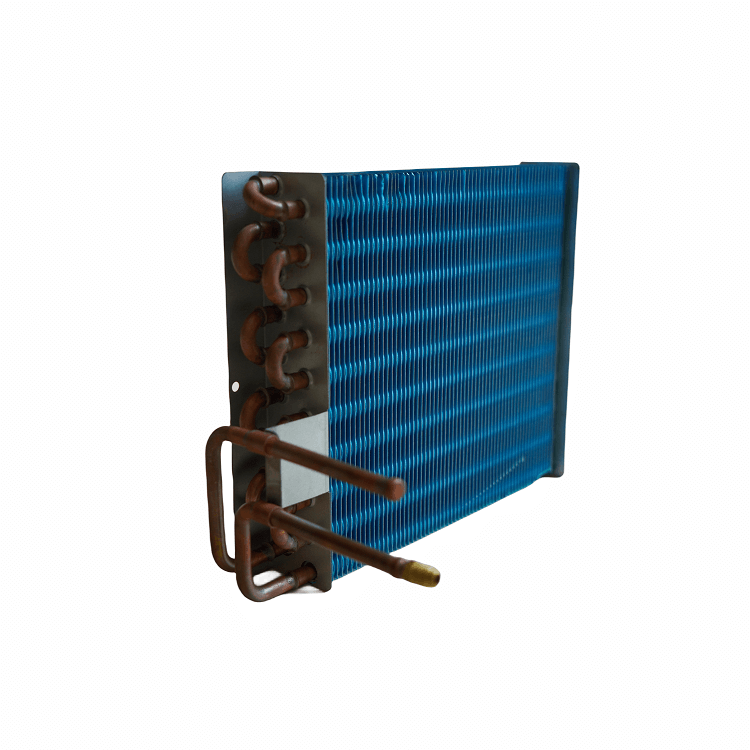

Condenser for Refrigerator (4)

**Topics:**



1. **Heat Transfer and Cooling Mechanism:** Explore the principles of heat transfer and cooling that take place in the air-cooled serpentine condenser, including convection, conduction, and the role of the serpentine design.


2. **Comparison with Water-Cooled Systems:** Conduct a comparative analysis of air-cooled serpentine condensers with water-cooled condensers, highlighting the advantages and disadvantages of each type in the context of refrigeration systems.


3. **Optimization of Serpentine Design:** Investigate how different configurations of the serpentine tubes impact the condenser's efficiency, cooling capacity, and overall performance.



4. **Efficiency Enhancements:** Research innovative techniques or technologies that can enhance the efficiency of air-cooled serpentine condensers, such as advanced materials, surface coatings, or improved airflow management.


5. **Environmental Impact:** Analyze the environmental benefits of using air-cooled condensers in refrigeration systems, including reduced water consumption and energy savings compared to water-cooled alternatives.


6. **Integration with Refrigeration Systems:** Examine how air-cooled serpentine condensers are integrated into various types of refrigeration systems, including household refrigerators, commercial display cases, and walk-in coolers.


7. **Cooling Performance in Different Climates:** Study how air-cooled serpentine condensers perform in different climatic conditions and how factors like temperature and humidity affect their efficiency.


8. **Future Trends in Refrigeration:** Explore emerging trends and technologies in the field of refrigeration, such as the use of alternative refrigerants, smart control systems, and sustainable design principles.

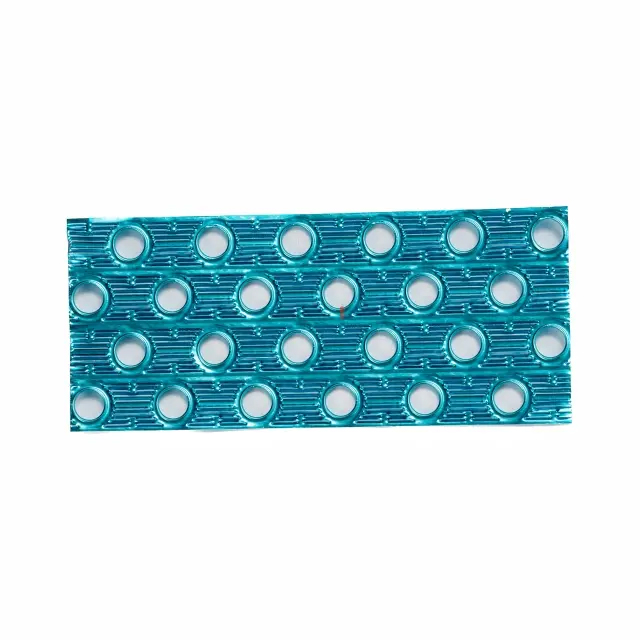

The fin heat exchanger was one of the earliest and most successful discoveries in the process of improving tubular heat transfer.Please refer to Mould Specification for more details.
