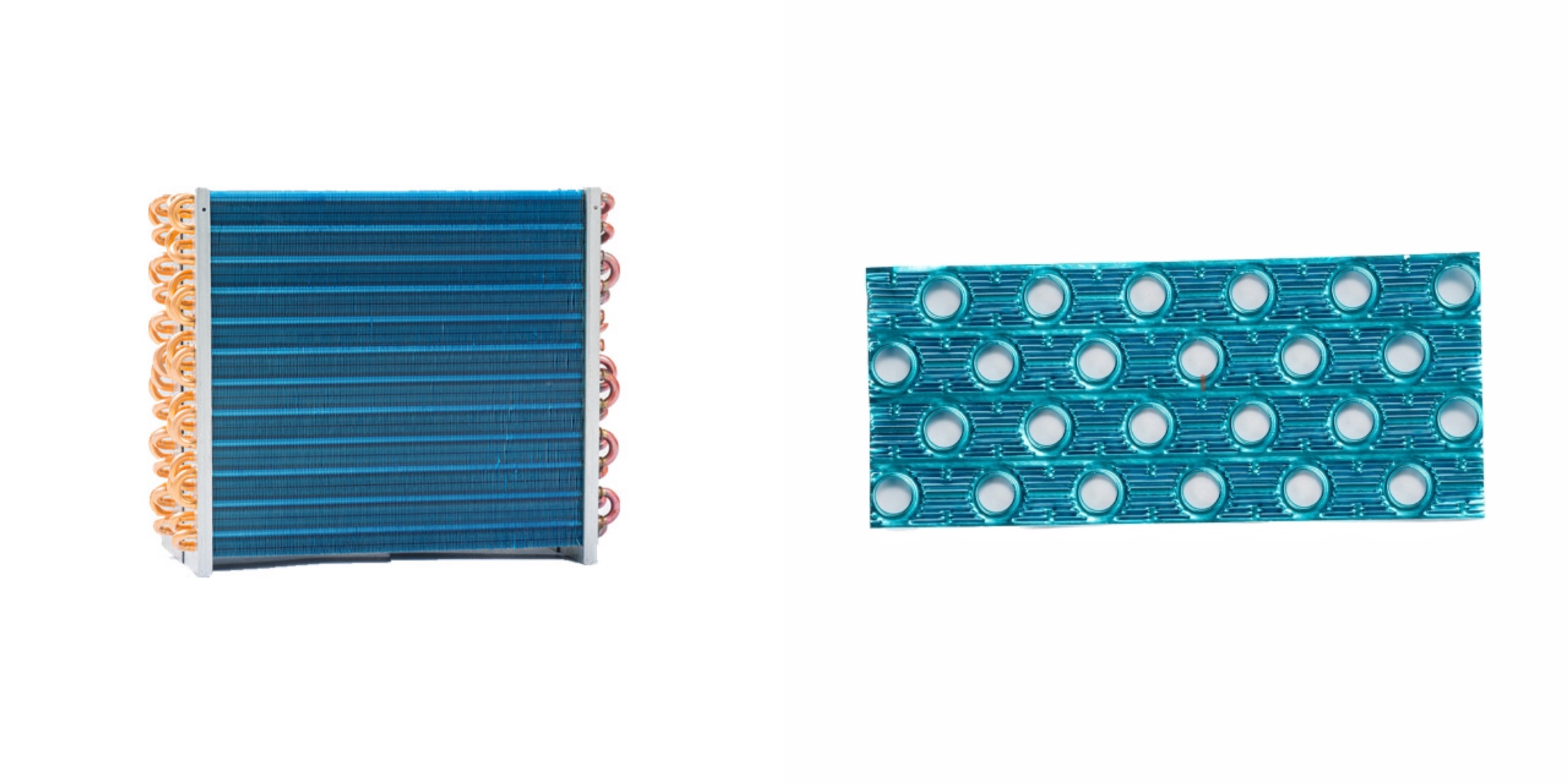

A Fin type air-cooled heat exchanger, also known as an air-fin heat exchanger or air-cooled radiator, is a device used to transfer heat from a hot fluid to the surrounding air. It is commonly used in applications where there is no access to a continuous supply of cooling water, such as in remote locations or for cooling industrial processes. Here are the descriptions and advantages of a Fin type air-cooled heat exchanger:

1. Finned Tubes: The core component of the air-cooled heat exchanger is a series of tubes with extended surfaces known as fins. The tubes carry the hot fluid (e.g., refrigerant, oil, or process fluid), and the fins are attached to the outer surface of the tubes to increase the heat transfer area.

2. Forced Air Cooling: The heat exchanger relies on forced convection for cooling, where a fan or blower forces air to flow over the external surface of the fins, carrying away the heat from the tubes.

3. Fins Design: The design of the fins is crucial for enhancing heat transfer efficiency. Fins are often designed in various shapes (e.g., flat, corrugated, or louvered) to optimize heat exchange performance.

1.Independence from Ambient Water Temperature: Unlike water-cooled heat exchangers whose performance can be affected by the ambient water temperature, air-cooled heat exchangers are not influenced by water availability or water temperature changes.

2. Low Operating Cost: Air-cooled heat exchangers do not incur the cost of pumping and treating cooling water, resulting in potentially lower operating expenses.

3. Easy Installation: Installation is straightforward since there is no need for a complex water supply and return system, as required in water-cooled heat exchangers.

4. Versatility: Air-cooled heat exchangers are versatile and can be used in various applications, including process industries, power plants, refineries, HVAC systems, and engine cooling in vehicles.

However, it's essential to consider that air-cooled heat exchangers might have slightly lower heat transfer efficiency compared to water-cooled alternatives, especially in very high-temperature applications. Additionally, their performance can be influenced by ambient air temperature and airflow conditions.

In summary, Fin type air-cooled heat exchangers offer advantages such as water independence, low operating cost, easy installation, and versatility, making them a viable cooling solution in various industries and applications.

The fin heat exchanger was one of the earliest and most successful discoveries in the process of improving tubular heat transfer.Please refer to Mould Specification for more details.
